Semi auto end load cartoning machine/ Intermittent end load cartoner LX-80 manufacturer from China Zhejiang Leadwing Packaging Machinery Co., Ltd

Semi auto end load cartoning machine/ Intermittent end load cartoner

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LX-80

Packing: wooden case

Processing: Sealing Machine

Type: General

Packaging: Paper

Production Capacity: 5 sets/month

Delivery Date: 60 days

Automatic Grade: Automatic

Usage: Outer

Brand Name: Leadwing

All of paper box packaging with tongue inserting. Including: Food, health care products, cosmetic, daily necessities, medicines, farcical tissue paper

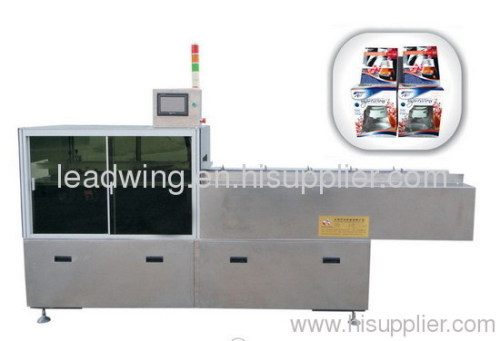

LX-80 Semi auto end load cartoning machine/ Intermittent end load cartoner

Feature:

1.PLC automatically controller, frequency control of motor speed, LED operating interface.

2.Inching and automatic can exchange, when there is no box, the machine don't work.

3.Automatically display the working speed and the quantity of box.

4.Continuous feeding the box, mechanization producing, and the working of the machine is stable.

Main function:

People put box in the rail, testing by photo electricity, then sealing box through tongue inserting and count end products.

Apply to object:

All of paper box packaging with tongue inserting. Including: Food, health care products, cosmetic, daily necessities, medicines, farcical tissue paper box and so on,

Technical Parameter:

Capacity		60-80 box/min
Box size range (mm)	Length	100-300
	Width	40-200
	Height	20-70
Thickness of box paper		250-350 gsm
Main motor power		0.75 KW
Power supply		220V, 50Hz, single phase
Pressure of compressed air		0.6-0.8 MPa
Consumption of compressed air		150-200 L/min
Overall Dimension (mm)		(L) 2000× (W) 1000× (H) 1700mm
Weight		About 1500 Kg
